CONCEPT

Concept: Agent Control PHP Application

Overview

This application aims to provide a centralized platform for controlling and coordinating Google Jules agents through GitHub issues. It leverages a PHP-based web server, MySQL database, and Google SSO for secure, multi-user management.

Business Cases

Case	Description
Centralized Agent Management	Simplify the coordination of multiple AI agents across various projects.
Workflow Automation	Automate repetitive tasks by triggering agent actions directly from project management tools like GitHub.
Improved Collaboration	Enable team members to manage and monitor agent activities in a unified interface.

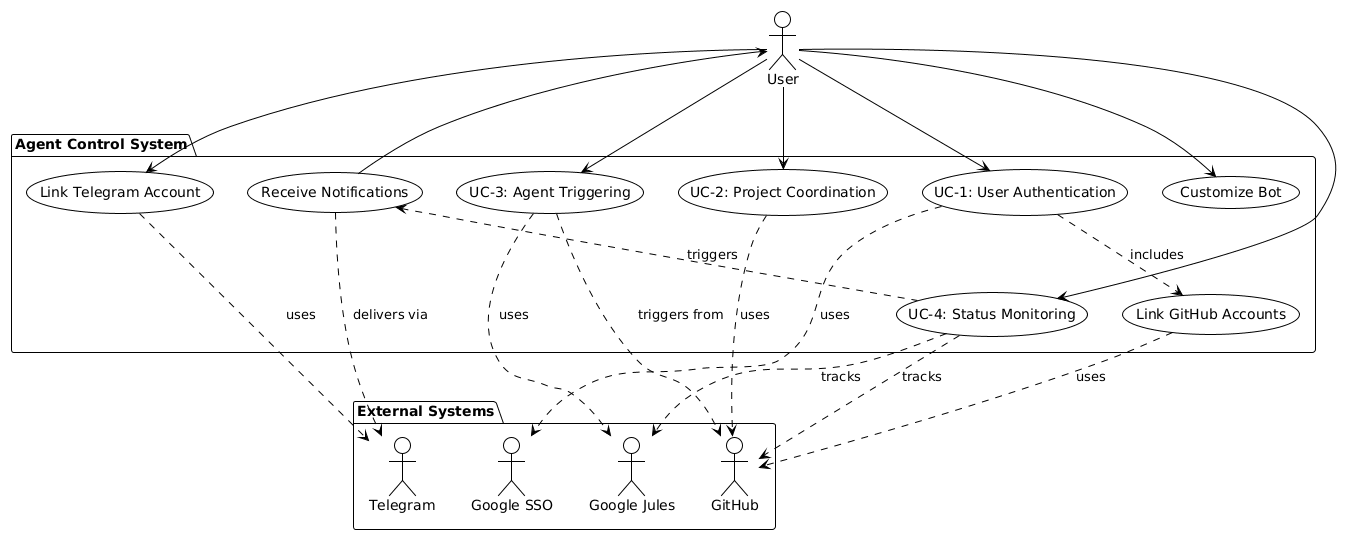

Use Cases

ID	Use Case	Description
UC-1	User Authentication	Secure login using Google SSO to manage access for different users, with support for linking multiple GitHub accounts per user.
UC-2	Project Coordination	Linking GitHub repositories and issues from any connected GitHub account to specific agent tasks.
UC-3	Agent Triggering	Automatically or manually initiating Google Jules agents based on GitHub issue activity.
UC-4	Status Monitoring	Tracking the progress and results of agent-led tasks within the application.

Core Entities & Mapping

The following table illustrates the core entities of the system and their representations across integrated services.

Entity	Application	Google OAuth	GitHub	Jules	Telegram	Relationship
USER	users table	google_id	user_github_accounts	jules_api_key	user_telegram_accounts	1 User : N GitHub, 1 User : 1 Telegram
PROJECT	projects table	-	Repository (github_repo)	-	-	1 User : N Projects
TASK	tasks table	-	Issue (issue_number)	Session Status	-	1 Project : N Tasks

High-Level Architecture

• Frontend: Web interface for users to manage projects and agents.

• Backend: PHP application handling logic, API integrations, and user sessions.

• Database: MySQL for storing user data, project configurations, and task logs.

• Integrations:

  • Google SSO: For authentication.

  • GitHub REST API: For repository and issue management.

  • Google Jules API: For agent control.

  • Telegram Bot API: For mobile-based agent control and notifications.

Mobile Interaction & Notifications (Telegram)

The Telegram integration provides a mobile-first interface for users to monitor and interact with their AI agents. Key features include:

• Account Linking: Users securely link their Telegram account by using a unique token generated in the dashboard, which is then sent to the bot via the /start command.

• Real-time Notifications: Instant alerts for critical events such as task completions, session failures, or new pull requests.

• Bot Customization: Support for user-specific Telegram bots, allowing each user to use their own bot token and webhook secret for enhanced privacy and control.

Logging & Performance Monitoring

To ensure reliability and maintainability, this application implements a robust logging strategy. This includes traditional event logging and automated performance monitoring for database and external API interactions.

Logging Levels

The application uses the following standard logging levels:

• DEBUG: Detailed information, typically of interest only when diagnosing problems.

• INFO: Confirmation that things are working as expected.

• WARNING: An indication that something unexpected happened, or indicative of some problem in the near future.

• ERROR: Due to a more serious problem, the software has not been able to perform some function.

• CRITICAL: A serious error, indicating that the program itself may be unable to continue running.

Performance Monitoring Strategy

The application automatically monitors the execution duration of critical components.

• Database Performance: All database queries executed through the Database class are timed. Any query taking longer than 1.0 second is automatically logged.

• External API Performance: All external API requests (e.g., GitHub REST API, Google Jules API) are timed. Any request with a duration exceeding 1.0 second is automatically logged.

Sub-Concepts

For detailed information on specific functional areas, refer to the following sub-concept documents:

Concept	File	Description
Cron Job System	CRONJOB_CONCEPT.md	Logic for triggering periodic synchronization of status changes.
Telegram Chat Control	CHAT_CONCEPT.md	Mobile interaction strategy and interactive bot capabilities.
State & Event	STATE_EVENTS_CONCEPT.md	Detailed state transitions and reactive system behaviors.
Notification System	NOTIF_CONCEPT.md	Multi-channel delivery and user preference management.
